Andere
Retract mechanical
Ø250mm TC 24V
Item code: 13 0650
| Sparepart for | Nutzen |
|---|---|
| Main products > Thrusters > DC > SR_SRV_SRL | SRV210/250TCOBS SRV210/250TC SRV170/250TC |
-
DNV AiP Thruster retract composite housing SR Ø250 and Ø300
Conformity CertificateEnglischpdf
Retract mechanical
Leitfaden für die Navigation durch die Ersatzteile
Nachstehend sehen Sie die oberste Ebene der Ihnen zur Verfügung stehenden Ersatzteilgruppen. Wenn Sie eine Komponente innerhalb der dargestellten Baugruppe wünschen, klicken Sie auf das Namensschild unter dem Bild, um zu einer detaillierten Ersatzteilliste für diese Baugruppe zu gelangen. Wenn keine zusätzlichen Ersatzteile verfügbar sind, bedeutet dies, dass die aktuelle Baugruppe aufgrund von Service- oder Installationsanforderungen als Ganzes gekauft werden muss.
Cable actuator
Cylinder head cap screw
Sensor cable SR
Hex lock nut
Hex socket set screw flat point
Hex socket flat countersunk head screw

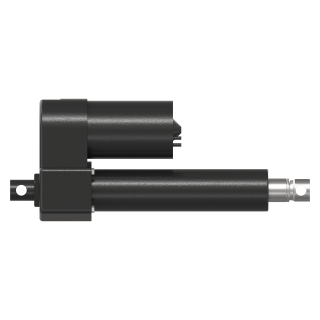

1 Actuator kit 24 v Retract 185-250mm
Locking bolt
Split pin
Flat washer without chamfer
Grommet kit
2 Adapter water proof SRV
Adaptor for seals SRV sensor
O-ring Ø14x3mm
Composite shaft for SRV sensor
O-ring Ø18x3mm
DIN 125 - A 4,3
ISO 7045 - M4 x 40
ISO 7045 - M4 x 55

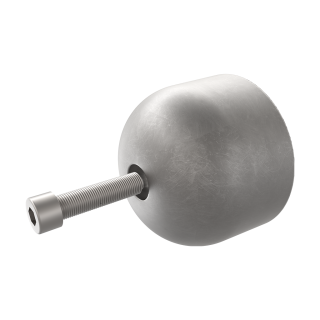

3 Anode Aluminium, SE120/130/150/170
Alu anode
Bolt

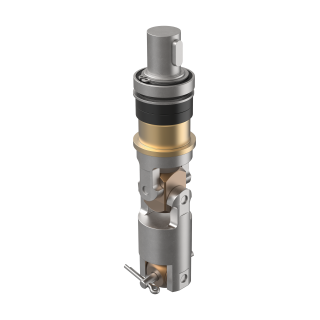

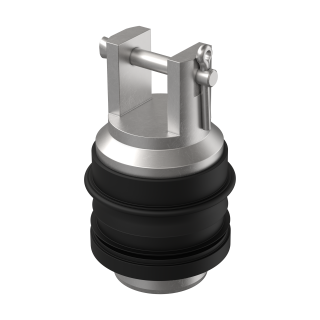

4 Retract drive shaft kit
Retaining ring for shaft
Deep groove ball bearings single row with two RS1 seals
Spring Retaining Ring
Rotary lip seal
Bearing Sintered
Parallel Key
Flexible drive shaft
Locking pin
Split Pin
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
