Zubehör für ausklappbare Bugstrahlruder

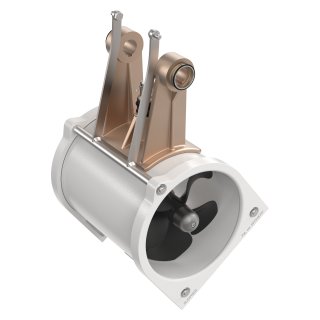

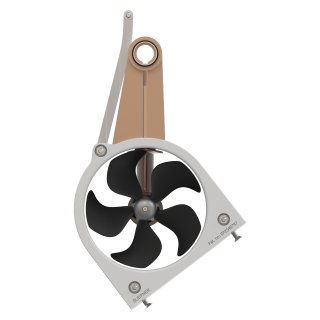

Tunnel kit retract Ø250mm TC, complete
Item code: SM175313
| Sparepart for | Nutzen |
|---|---|
| Accessories, components and spare parts > For thrusters only > Mechanical retract assemblies | 13 0650 |
| Main products > Thrusters > DC > SR_SRV_SRL | SRLP170/250TC SRVP170/250TC SRVP210/250TCOBS |
Tunnel kit retract Ø250mm TC, complete
Leitfaden für die Navigation durch die Ersatzteile
Nachstehend sehen Sie die oberste Ebene der Ihnen zur Verfügung stehenden Ersatzteilgruppen. Wenn Sie eine Komponente innerhalb der dargestellten Baugruppe wünschen, klicken Sie auf das Namensschild unter dem Bild, um zu einer detaillierten Ersatzteilliste für diese Baugruppe zu gelangen. Wenn keine zusätzlichen Ersatzteile verfügbar sind, bedeutet dies, dass die aktuelle Baugruppe aufgrund von Service- oder Installationsanforderungen als Ganzes gekauft werden muss.
Thrust washer

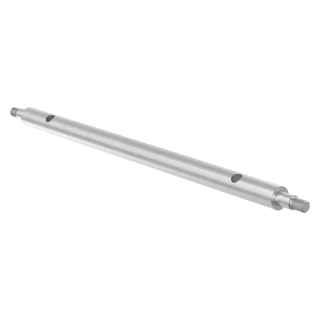

Lifting rod
Hex head screws
Sleeve bearing
Split pin
Split pin
Wype Ring
O-ring

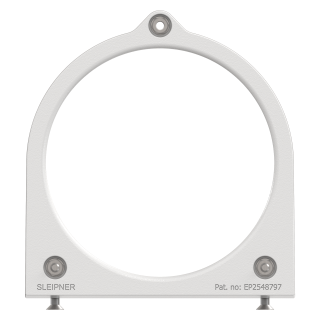

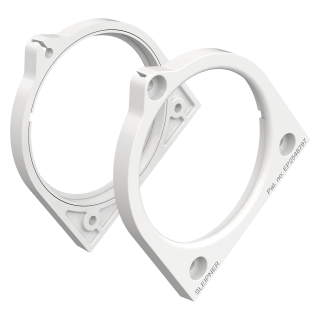

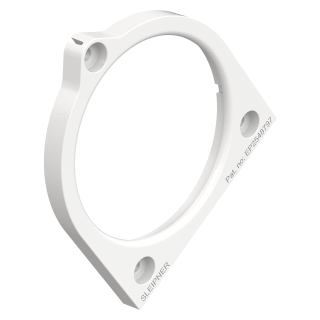

Turn ring
Tunnel bracket
1 Befestigungssatz, ausfahr. Strahlruder, 250mm
DIN 934 - M10
DIN 7991 - M10 x 70 A4
Sliding band
-1.png)
DIN 125 - A 10,5
DIN 985 - M10 x 1,5
ISO 1234 - 3,2 x 20
2 Gearleg SRV170/210 replacement kit
Mechanical sealing Ø35
Bushing for drive pins
DIN 3771 - 43,7 x 3,55 - NBR

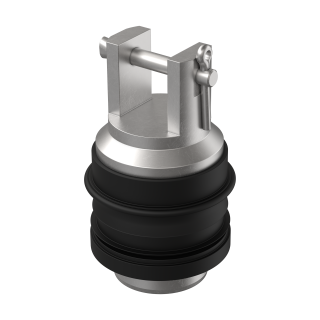

3 Vertikale Antriebsachse, Satz, SRV130 … 210
Split pin
Locking pin
Drive shaft lower link
Mechanical sealing Ø35
Bushing for drive pins
4 Getriebe komplett SE170/210
5 Getriebe komplett, ohne Propeller SE170/210
Shaft seal
Bolt
Lock washer
Washer
Drive pin
Washer for propeller
Nut for propeller

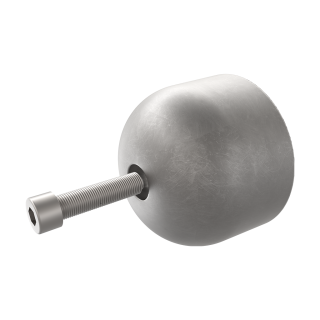

6 Anode Aluminium, SE120/130/150/170
Alu anode
Bolt
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
