Ausklappbare Anlagen
Retract mechanical SRV130/12V
Ø250mm T 12V
Item code: 13 0653
| Product weight | Nutzen |
|---|---|
| Net weight | 63.5kg / 139.99lbs |
| Sparepart for | Nutzen |
|---|---|
| Main products > Thrusters > DC > SR_SRV_SRL | SRVP130/250T-12V SRLP130/250T-12V SRV130/250T-12V SRL130/250T-12V |
-
DNV AiP Thruster retract composite housing SR Ø250 and Ø300
Conformity CertificateEnglischpdf
Retract mechanical SRV130/12V
Leitfaden für die Navigation durch die Ersatzteile
Nachstehend sehen Sie die oberste Ebene der Ihnen zur Verfügung stehenden Ersatzteilgruppen. Wenn Sie eine Komponente innerhalb der dargestellten Baugruppe wünschen, klicken Sie auf das Namensschild unter dem Bild, um zu einer detaillierten Ersatzteilliste für diese Baugruppe zu gelangen. Wenn keine zusätzlichen Ersatzteile verfügbar sind, bedeutet dies, dass die aktuelle Baugruppe aufgrund von Service- oder Installationsanforderungen als Ganzes gekauft werden muss.
Lifting arm complete SB
DIN 912 - M8 x 50
DIN 127 - A 8
DIN 125 - A 8,4
DIN 985 - M8 x 1,25
Flexible drive shaft
Cable actuator
Sensor cable SR
Kits
-
SM143716 20 1180 A
-
SM170662 SM170662
-
SM901300B 10 2076
-
SM901301 10 2077
-
SM901479 140100

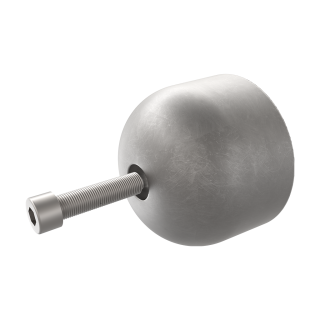

1 Anode Aluminium, SE120/130/150/170
Anode - aluminium
Hex socket cap screw

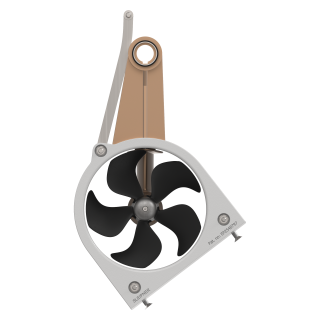

2 Tunnel kit retract Ø250mm T, complete
Split pin
Locking pin
Drive shaft lower link
Bushing for drive pins
O-ring
Sleeve bearing
Thrust washer
Hex head screws
O-ring
Wype Ring

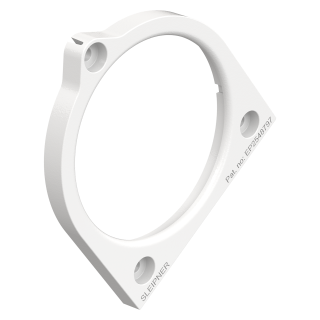

Turn ring

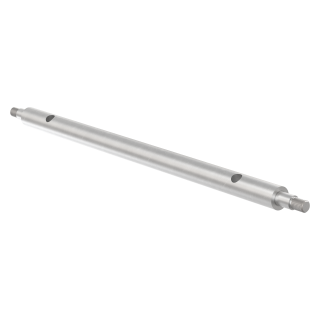

Lifting rod
Tunnel bracket
Sliding band
_3@72dpi.png)
Flat washer without chamfer
Hex lock nut
Hex socket set screw w/ cone point
Hex socket flat countersunk head screw
Hex nut
Split pin
Split pin
Kits
-
SM143716 20 1180 A
-
SM170662 SM170662
-
SM900585A 6 2143
-
SM901300B 10 2076
-
SM901301 10 2077

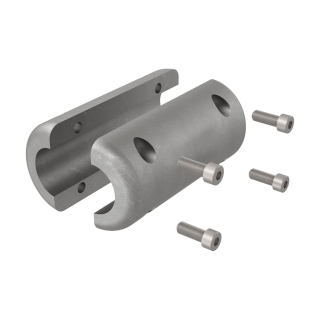

3 Anode für SRV Strahlruder
DIN 934 - M4
Anode SRV
Anode SRV
DIN 912 - M4 x 12

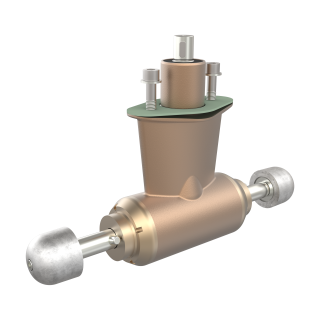

4 Getriebe komplett, ohne Propeller SE130
DIN 127 - A 10
DIN 125 - A 10,5
DIN 125 - A 17
DIN 985 - M16x2
Kits
-
SM143716 20 1180 A
-

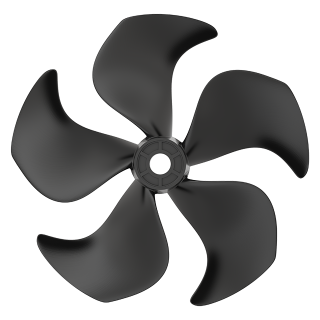

Propeller kit SE130, SE170/210 RH Q-Prop™SP148600
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
