- Tunnel kit retract Ø300mm TC, complete
Zubehör für ausklappbare Bugstrahlruder
Tunnel kit retract Ø300mm TC, complete
Item code: SM168120
| Product weight | Nutzen |
|---|---|
| Net weight | 34.2254kg / 75.45lbs |
| Sparepart for | Nutzen |
|---|---|
| Accessories, components and spare parts > For thrusters only > Mechanical retract assemblies | 20 0651OBS 20 0651 |
| Main products > Thrusters > DC > SR_SRV_SRL | SRVP300/300TC |
-
DNV Type Approval Tunnel thruster
Product Specification Sheets, Conformity CertificateEnglischpdf

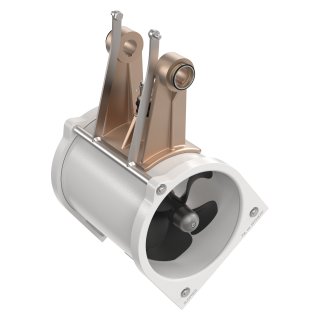

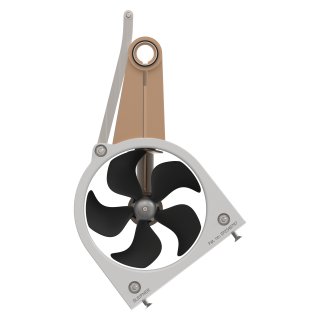

Tunnel kit retract Ø300mm TC, complete
Leitfaden für die Navigation durch die Ersatzteile
Nachstehend sehen Sie die oberste Ebene der Ihnen zur Verfügung stehenden Ersatzteilgruppen. Wenn Sie eine Komponente innerhalb der dargestellten Baugruppe wünschen, klicken Sie auf das Namensschild unter dem Bild, um zu einer detaillierten Ersatzteilliste für diese Baugruppe zu gelangen. Wenn keine zusätzlichen Ersatzteile verfügbar sind, bedeutet dies, dass die aktuelle Baugruppe aufgrund von Service- oder Installationsanforderungen als Ganzes gekauft werden muss.
DIN EN ISO 1234 - 3,2x20
DIN 3771 - 48,9 x 2,62 - NBR
Turn ring Ø45
Wype Ring
Tunnel bracket
DIN EN ISO 1234 - 6,3x44
DIN EN ISO 1234 - 3,2x12
Ø8 x 46,2 mm
Lower drive shaft joint
DIN 7 - 10 x 32 m6
O-ring 12,5 x 1,8
Blind plug
Tunnel
Bushing for drive pins

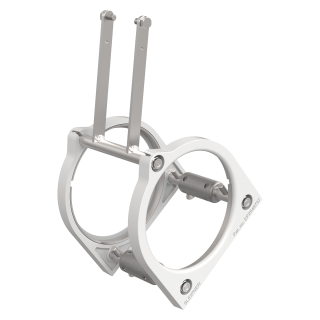

1 Twist ring kit
Sleeve bearing
Thrust washer
DIN 933 - M10 x 20 (A4)
DIN 934 - M10 (A4)
DIN 7991 - M10x70 A4
Connecting rod
Twist ring
DIN 125 - A 10,5 (A4)
DIN 985 - M10x1,5 (A4)
Kits
-
SM906006 140629

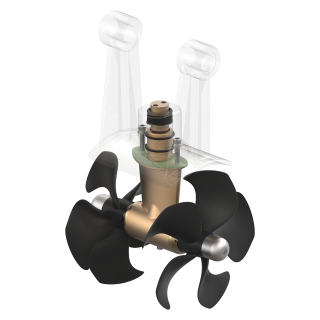

2 Gearleg SRV300 replacement kit
Bushing for drive pins
Kits
-
SM143716 20 1180 A
-
SM906379 113048
-
Propeller kit SE250/300 5bl Q-Prop™SP130943
-
Propeller kit SE250/300 RH 5bl Q-Prop™SP130945
3 Anode für SRV Strahlruder
DIN 934 - M4
Anode SRV
Anode SRV
DIN 912 - M4 x 12

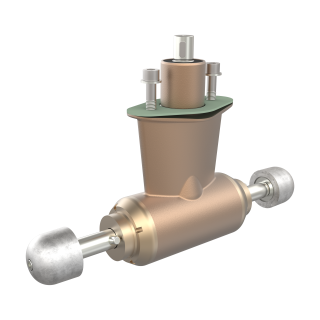

4 Getriebe komplett, ohne Propeller SRV300TC
DIN 912 - M10 x 60
DIN 127 - A 10
DIN 125 - A 10,5
Bolt w/copper gasket
DIN 125 - A 17
DIN 985 - M16x2
Kits
-
SM143716 20 1180 A

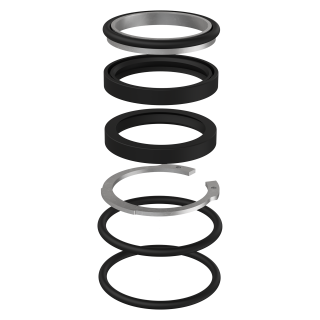

5 Service kit retract 300mm
Wyper ring
O-ring 41,28x3,53
DIN 3760 - AS - 40 x 50 x 7 - NBR - Stainless
Inverted Internal Circlip DIN 5008 50x2
O-ring Ø50x4

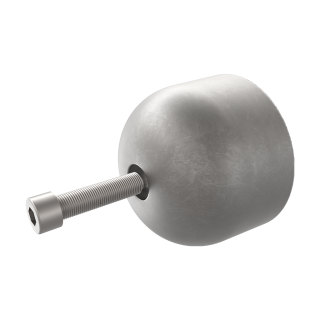

6 Anode Aluminium, SE120/130/150/170
Anode - aluminium
Hex socket cap screw
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
