Steuerpumpen

Helm pump, hydraulic steering 70cm³ with flange

Item code: 72070
Compliance Nutzen
DNV approved Ja
CE Ja
UKCA Ja

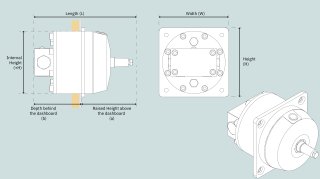

Dimensions Nutzen
(H) Height 150.5mm / 5.9in
(+H) Additional Height 136mm / 5.4in
(L) Length 212mm / 8.3in
(W) Width 150.5mm / 5.9in
(a) 110mm / 4.3in
(b) 102mm / 4in
Gear leg Oil Nutzen
Gear leg oil type ISO VG15 / DIN 51524-3 HVLP
Hydraulic Nutzen
Non-return valve Ja
Hydraulic steering data Nutzen
Pump displacement (ccm) 70
Port dimensions BSP A/B 3/8” and 1/4”
Helm pump type with flange
Ideal vessel integration Nutzen
Typical vessel class Motor boat, Commercial vessel, Sail boat
